When selecting an optocoupler for electronic circuit isolation, the EL817 and PC817 are two popular choices, each offering distinct advantages for specific applications. Both optocouplers provide essential signal isolation between different voltage domains, preventing electrical interference and ensuring safety in various circuits. While they share some similarities, such as their 4-pin DIP packaging and infrared LED coupled to a phototransistor, each model has unique features that make it better suited for particular tasks.

In this comparison, we will explore the differences between the EL817 and PC817 in terms of their pinout, features, applications, and other factors, helping you determine the best option for your project needs.

What is EL817

The EL817 is an optocoupler consisting of an infrared emitting diode (LED) optically coupled to a phototransistor. Designed for electrical isolation, the EL817 is packaged in a standard 4-pin DIP, available in various configurations, including surface-mount options. Its main purpose is to provide a secure means of transferring electrical signals between two isolated circuits, making it ideal for interfacing microcontrollers with high-voltage AC or DC systems.

How to use EL817

To use the EL817, connect its input side (pins 1 and 2) to the control circuit with a current-limiting resistor for the LED. The output side (pins 3 and 4) is connected to the high-voltage side, typically with the collector tied to a pull-up resistor. This configuration allows the EL817 to switch the output based on the input signal, ensuring electrical isolation while transmitting the control signal effectively.

What is PC817

The PC817 is another optocoupler widely used for signal isolation, featuring an infrared LED coupled to a phototransistor in a 4-pin DIP package. Like the EL817, it ensures safe and noise-free transmission of electrical signals between circuits operating at different voltage levels. The PC817 is renowned for its reliability and compatibility with various industrial and consumer electronics applications.

How to use PC817

To use the PC817, connect its input terminals (anode and cathode) to the control circuit with a resistor to limit the LED current. On the output side, connect the collector to the power supply through a pull-up resistor and the emitter to the ground of the output circuit. This setup allows the PC817 to isolate and transfer control signals between circuits efficiently.

EL817 vs PC817: Pinout

EL817 vs. PC817: Pinout

Both EL817 and PC817 share a similar 4-pin DIP pinout:

• Pin 1 (Anode): Connects to the LED’s positive terminal.
• Pin 2 (Cathode): Connects to the LED’s negative terminal.
• Pin 3 (Emitter): Phototransistor output.
• Pin 4 (Collector): Connects to the high-voltage side via a pull-up resistor

EL817 vs PC817: Features

EL817 Features

Maximum Supply Current: 95µA

Maximum Offset Voltage:

200µV (EL8170)

1000µV (EL8173)

Maximum Input Bias Current: 3nA

Bandwidth (-3dB):

396kHz (Gain = 10)

192kHz (Gain = 100)

Single-Supply Operation:

Input Voltage Range: Rail-to-rail

Output Swing: Rail-to-rail

Compliance: Pb-Free (RoHS Compliant)

PC817 Features

Input Diode Forward Voltage: 1.25V

Maximum Collector-Emitter Voltage: 80V

Maximum Collector Current: 50mA

Cut-off Frequency: 80kHz

Rise Time: 18µs

Fall Time: 18µs

Packaging Options: Available in 4-pin DIP through-hole or SMT package

EL817 vs PC817: Application

EL817 Applications

• Measuring Instruments
• Home Appliances
• Telecommunication Devices
• Programmable Controllers

PC817 Applications

• Electrical Isolation Circuits
• Microcontroller I/O Switching
• Signal Isolation
• Noise Coupling Circuits
• Isolation Between Digital and Analog Circuits
• AC/DC Power Control

EL817 vs PC817: Equivalent

EL817 Equivalent

TLP181

LTV817

K817P

PC817 Equivalent

TLP321

MCT2E

LTV817

EL817 vs PC817: Advantages

EL817 Advantages

• Low Input Current Requirement:...

Read more

Addressable LED strips have become a popular solution for creating dynamic and colorful lighting effects in various applications, from home décor to large-scale displays. Among the many options available, the WS2811 and WS2812B LED strips stand out for their flexibility, ease of use, and widespread compatibility with popular microcontrollers like Arduino and Raspberry Pi. However, understanding the differences between these two models is essential for selecting the right one for your project. This guide will compare the WS2811 and WS2812B LED strips, focusing on their key features, performance, and best use cases.

Overview of WS2811 and WS2812B

Both the WS2811 and WS2812B are addressable LED strips, meaning that each LED (or group of LEDs) can be individually controlled in terms of color and brightness. They share many similarities but also have crucial differences that affect their performance and application.

• WS2811: This model uses an external IC and operates at 12V. It controls groups of three LEDs at a time, making it suitable for larger installations where individual control of every LED isn’t necessary.
• WS2812B: Unlike the WS2811, the WS2812B has a built-in IC in each LED and operates at 5V. This allows for individual control of each LED, making it a preferred choice for detailed lighting designs where high precision is required.

Voltage Differences: 5V vs. 12V

One of the most noticeable differences between the WS2811 and WS2812B is their operating voltage. The WS2811 operates at 12V, while the WS2812B operates at 5V.

• WS2811 and Voltage Drops: Higher voltage means the WS2811 is more resistant to voltage drops over longer distances. This makes it a better option for installations where the power source is far from the LEDs, as the voltage drop will be less noticeable. For long runs of LED strips, the WS2811 offers more consistent performance without the need for frequent power injection points.
• WS2812B and Power Efficiency: On the other hand, the WS2812B’s lower operating voltage (5V) makes it more energy-efficient, which is particularly important for projects where power consumption is a concern. However, it is more sensitive to voltage drops, and longer strips may require additional power injection to maintain consistent brightness and color across the strip.

Control and Wiring

Both the WS2811 and WS2812B are controlled via a single data line, which simplifies wiring compared to older LED strips that required separate data and clock lines. However, there are some differences in how the control mechanisms work.

• WS2811: This strip controls groups of three LEDs with one external controller chip (IC). Because it controls LED clusters rather than individual LEDs, it is less suited for projects requiring high precision in color and brightness control. The WS2811’s data transmission protocol is similar to other serial data lines, and its wiring can be slightly more complex due to the need for an external IC.
• WS2812B: In contrast, the WS2812B features a built-in IC within each LED, allowing individual LED control. This provides much greater flexibility when designing custom lighting patterns, animations, or intricate displays. The WS2812B strip only requires three connections: 5V power, ground, and data. This simplicity makes it easier to set up and reduces the number of components needed in your project.

Power Consumption and Efficiency

When choosing between WS2811 and WS2812B, power consumption is a significant consideration, especially for battery-powered or energy-efficient projects.

• WS2811: The WS2811’s operating voltage of 12V generally leads to a higher overall power consumption than the WS2812B. However, because it controls groups of three LEDs at a time, the per-LED power consumption is effectively lower, making it a good choice for larger installations where energy efficiency over long distances is important.
• WS2812B: The WS2812B consumes more power per meter because of its lower voltage (5V) and individual...

Read more

The MAX485 IC is a half-duplex RS-485/RS-422 transceiver, designed to optimize the balance between power consumption and high-speed data transmission. It’s based on Analog Devices’ expertise in precision electronics and caters to both industrial and commercial markets. One of its defining characteristics is its ability to function effectively over long distances while maintaining low power consumption, a crucial requirement in systems that need to preserve energy or use battery-powered setups.

Pin Configuration and Operation

The MAX485 has an 8-pin configuration:

1. RO (Receiver Output): Outputs the data received from the differential bus.
2. RE (Receiver Enable): Controls whether the receiver is active or disabled.
3. DE (Driver Enable): When high, enables the driver; when low, it places the driver in a high-impedance state.
4. DI (Driver Input): Sends data to the driver for transmission on the bus.
5. GND: Ground.
6. A & B (Differential Inputs/Outputs): The two differential signal lines used for data transmission.
7. Vcc: Supply voltage pin, typically powered by a 5V source.

Low Power Consumption and Sleep Mode

One of the MAX485's standout features is its ultra-low power consumption in both active and standby modes. The device operates on a 5V power supply, consuming less than 300 µA during normal operation. Additionally, it enters a low-power shutdown mode when the driver and receiver are disabled, reducing the power draw to less than 1 µA, making it ideal for battery-powered or remote applications. This is a crucial advantage in scenarios like remote sensor monitoring or wireless communications, where devices need to conserve as much power as possible between communication intervals.

High Data Transmission Rate

The 2.5 Mbps data transmission rate of the MAX485 ensures fast and reliable communication, even in systems with significant data load. Whether it's used for real-time data monitoring, industrial automation, or digital communications, the MAX485 can handle the speed and accuracy demands of modern systems. This high-speed transmission capability allows for smooth integration into systems requiring near-instant data updates, such as SCADA systems, sensor networks, and building automation.

Robustness in Harsh Environments

The MAX485’s differential signaling technique is key to its robustness, especially in harsh industrial environments where electrical noise is a challenge. Differential signals, transmitted over twisted-pair cabling, are far less susceptible to external electromagnetic interference (EMI), ensuring data integrity even in areas with heavy industrial equipment. This makes the MAX485 ideal for environments such as factories, automotive, and power stations, where uninterrupted, error-free communication is critical.

Additionally, the IC can operate over a wide temperature range of -40°C to +85°C, which ensures that it can function in outdoor or industrial settings where temperature fluctuations are common.

Multi-device Bus Support

In many systems, communication isn't just between two devices but involves several nodes sharing data. The MAX485's support for up to 32 transceivers on a single bus allows for more complex and multi-device systems, such as distributed control systems (DCS) in industrial setups. This feature is particularly beneficial in industrial control systems, where multiple machines or devices need to communicate simultaneously.

Integrated Protection Features

The MAX485 is built to withstand potential damage from transient voltage spikes often encountered in harsh environments. The IC includes short-circuit protection and thermal shutdown features to safeguard the transceiver and prevent failures due to excessive heat or miswiring. This is essential in factory automation systems and motor controls, where voltage spikes and environmental stresses can lead to equipment failures.

Advantages of the MAX485 over Competing Solutions

1. Energy Efficiency: The low power consumption of the MAX485,...

Read more

What is a Memory Controller?

A memory controller is an essential component in computer architecture, tasked with managing the interaction between the Central Processing Unit (CPU) and the system's main memory. Its primary function is to oversee the data flow, ensuring that read and write operations to memory are performed efficiently and accurately. Over time, the role and design of memory controllers have evolved significantly, reflecting advancements in technology aimed at reducing latency, improving performance, and enhancing system efficiency.

Historical Overview of Memory Controllers

In the early days of computing, memory controllers were separate chips located on the motherboard's northbridge, also known as the memory controller hub. This design, common in older Intel and PowerPC-based systems, required data to traverse multiple stages, including the CPU, northbridge, and memory, before completing a transaction. This multi-step process introduced notable latency, which could hinder overall system performance.

The major breakthrough came in 2003 with AMD's K8 architecture, which integrated the memory controller directly within the CPU. This innovation significantly reduced memory latency by eliminating the need for data to travel across the front-side bus (FSB) between the northbridge and the CPU. The integration of memory controllers into the CPU marked a substantial improvement in system performance and efficiency.

Intel followed suit with its Nehalem architecture in 2008, further embedding the memory controller into the CPU. This shift to integrated memory controllers (IMCs) became a standard practice, with both AMD and Intel adopting this design in their modern processors. This evolution led to faster data access, reduced latency, and a more streamlined system architecture.

How Memory Controllers Work

Memory controllers play a critical role in managing the flow of data between the CPU and memory. They ensure that data is read from and written to memory in a timely and organized manner. The functionality of a memory controller involves several key aspects:

Memory Frequency: The frequency of memory, measured in megahertz (MHz), directly impacts the speed at which data can be processed. For example, DDR3 memory typically operates at a frequency of 1600MHz, while DDR4 memory can reach frequencies up to 2133MHz. Higher memory frequencies enable faster data processing, which is crucial for improving overall system performance.

Memory Capacity: The capacity of memory modules, which can range from 1GB to 16GB or more in modern systems, influences both performance and cost. Larger memory capacities allow for more applications to run simultaneously, enhancing system performance, particularly in 64-bit operating systems like Windows 10.

Operating Voltage: The voltage at which memory modules operate varies by type. DDR2 memory typically operates at 1.8V, while DDR3 operates at around 1.5V or 1.35V. Overclocking, which involves increasing the memory's voltage to achieve higher performance, can generate excessive heat and potentially damage the hardware.

Timing Parameters: Timing parameters such as CAS Latency (tCL), RAS to CAS Delay (tRCD), Row Precharge Timing (tRP), and Min RAS Active Timing (tRAS) are crucial in determining how quickly memory operations are executed. These parameters govern the delays between various stages of memory operations, such as addressing rows and columns within the memory matrix. Lower timing values generally indicate faster memory performance, though they must be balanced with system stability.

Security Aspects of Memory Controllers
Modern memory controllers incorporate several security features designed to protect data integrity and confidentiality. One notable feature is memory scrambling, which converts user data written to main memory into pseudo-random patterns. This technique helps prevent certain types of attacks, such as cold boot attacks, by making it difficult for unauthorized parties...

Read more

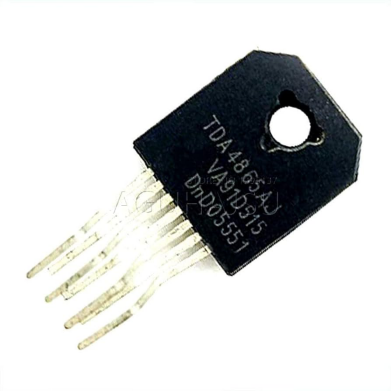

What is TDA4865AJ

The TDA4865AJ is an integrated circuit developed by NXP Semiconductors, designed specifically for vertical deflection applications in television and monitor systems. It features a power amplifier with differential inputs, capable of delivering high output current up to 3.8 A (peak-to-peak) and supporting vertical deflection frequencies up to 200 Hz. The IC is optimized for linear sawtooth signal amplification and includes an internal flyback generator that simplifies design by internally doubling the supply voltage, eliminating the need for an external flyback supply. The TDA4865AJ operates over a wide temperature range and is housed in a rectangular, flange mount package. It is suitable for use in various applications, including televisions, computer monitors, oscilloscopes, projectors, and medical imaging equipment, where stable and precise vertical deflection is crucial.

Pinout

TDA4865AJ Equivalent IC

The TDA4865AJ has several equivalent integrated circuits that offer similar functionality and performance. Some of these equivalents include:

TDA4865J: A closely related variant with similar vertical deflection capabilities.

TDA4863AJ: Another option in the same series, providing comparable performance in vertical deflection applications.

TDA4860: A related IC from the same family, offering similar features for vertical deflection.

TDA4862: Provides vertical deflection functions with similar characteristics and performance.

Specifications of TDA4865AJ

• Package Description: Plastic, SOT-524-1, DIL-BENT-SIL, 7 PIN
• REACH Compliance: Yes
• EU RoHS Compliance: Yes
• Product Status: Active
• Type: Vertical Deflection IC
• Blanking Output: Absent
• JESD-30 Code: R-PZFM-T7
• Functions: Single
• Terminals: 7
• Temperature Range: -20.0°C to 75.0°C
• Material: Plastic/Epoxy
• Package Code: ZIP
• Package Equivalence: ZIP7,.2,.1TB
• Shape: Rectangular
• Mounting Style: Flange Mount
• Qualification: Not Qualified
• Category: Other Consumer ICs
• Maximum Supply Current: 60.0 mA
• Supply Voltage Range: 9.0 V to 35.0 V
• Surface Mount Capability: No
• Technology: Bipolar
• Temperature Grade: Commercial Extended
• Terminal Type: Through-Hole
• Pitch: 1.27 mm
• Terminal Layout: Zig-Zag

TDA4865AJ Features and Advantages

Power Amplifier with Differential Inputs: The TDA4865AJ features a robust power amplifier designed for differential signal inputs, ensuring high precision and stability in signal processing.

High Output Current: Capable of delivering an output current up to 3.8 A (peak-to-peak), the TDA4865AJ supports high-demand applications with significant power requirements.

High Vertical Deflection Frequency: The IC supports a vertical deflection frequency of up to 200 Hz, making it suitable for applications requiring rapid image refresh rates.

Enhanced Linear Sawtooth Signal Amplification: It provides superior amplification of linear sawtooth signals, enhancing the quality and accuracy of signal reproduction.

Flyback Generator: Adjustable Flyback Supply Voltage: Unlike the TDA4865J, the TDA4865AJ incorporates an internally doubled supply voltage for flyback generation, optimizing performance for DC-coupled outputs. This internal voltage doubling simplifies design and reduces the need for external adjustments.

TDA4865AJ Application

Television Vertical Deflection Circuits: The TDA4865AJ is ideal for driving the vertical deflection coils in television receivers, providing high current output and precise control for stable image display.

Monitor Deflection Systems: It is used in computer and CRT monitors to manage vertical deflection, ensuring accurate and stable image positioning and refresh rates.

Oscilloscope Vertical Deflection: The IC can be employed in oscilloscopes for vertical deflection, offering high-frequency performance and linear signal amplification for detailed waveform analysis.

Projector Vertical Scanning: In projection systems, the TDA4865AJ manages vertical scanning for projecting...

Read more

Addressable RGB LEDs have revolutionized lighting and visual effects in various applications, from decorative lighting and digital signage to custom PC builds and wearable technology. Among the popular choices in this domain are the WS2812 and WS2813 LEDs. Both are widely used due to their ease of control and vibrant color output, but they have distinct features and differences that make them suitable for different applications. This article delves into the technical specifications, advantages, and use cases of WS2812 and WS2813 LEDs to help you make an informed decision.

Overview of WS2812

The WS2812 is an addressable RGB LED that integrates a control circuit and RGB chip in a 5050 package. Each LED can be controlled individually, allowing for complex lighting patterns and effects. Key features of the WS2812 include:

Key Features

• Integrated Control Circuit: Each LED contains its own control circuitry, which simplifies wiring and reduces the need for external components.
• Single-Wire Communication: The WS2812 uses a single data line for communication, simplifying the control scheme.
• High Brightness: Each LED can produce bright and vivid colors, thanks to its efficient RGB chip.
• 16.8 Million Colors: The 8-bit color depth per channel (red, green, blue) allows for 16.8 million color combinations.
• Compact Size: The 5050 package (5mm x 5mm) is compact, making it suitable for applications where space is limited.
• Wide Application Range: Commonly used in decorative lighting, LED displays, and custom electronic projects.

Overview of WS2813

The WS2813 is an improved version of the WS2812, offering additional features and enhancements. While retaining the same basic structure and operation, the WS2813 introduces fault tolerance and improved reliability. Key features of the WS2813 include:

Key Features

• Dual Data Lines: The WS2813 has two data lines (Data In and Backup Data In), providing redundancy and increasing reliability.
• Improved Fault Tolerance: If one LED fails or is disconnected, the backup data line ensures that the rest of the LEDs continue to function correctly.
• High Brightness: Similar to the WS2812, the WS2813 provides bright and vivid colors.
• 16.8 Million Colors: The WS2813 also offers 8-bit color depth per channel, resulting in 16.8 million color combinations.
• Compact Size: The WS2813 also comes in a 5050 package, making it suitable for space-constrained applications.
• Enhanced Control: The redundancy of data lines allows for more reliable and stable operation in complex installations.

WS2812 vs WS2813 Technical Comparison

1. Data Transmission

• WS2812: Utilizes a single data line for communication. The data signal is regenerated and passed along by each LED to the next in the series.
• WS2813: Incorporates dual data lines (Data In and Backup Data In). This dual-line configuration ensures that if one data line is interrupted, the backup line maintains the data transmission, enhancing reliability.

2. Fault Tolerance

• WS2812: If one LED fails or a connection is lost, all subsequent LEDs in the series will stop functioning, which can disrupt the entire setup.
• WS2813: Designed with fault tolerance in mind. The dual data line system ensures that even if one LED fails or a connection is disrupted, the rest of the LEDs continue to operate, making it more suitable for large and complex installations.

3. Control and Refresh Rate

• WS2812: Has a standard control protocol with a refresh rate that is adequate for most applications but can suffer from slight delays in long chains due to the single data line.
• WS2813: Offers a higher refresh rate and more stable performance due to its dual data lines, which help mitigate the propagation delays experienced in long chains.

4. Power Consumption

• WS2812: Each LED draws approximately 50mA at full brightness (all three RGB channels at maximum). Power consumption needs to be carefully managed, especially in large installations.
• WS2813: Similar power consumption per LED as the WS2812. However, the dual...

Read more

A triode is a fundamental electronic component that belongs to the family of vacuum tubes. It consists of three main electrodes: the cathode, anode (or plate), and control grid. Triodes are crucial in the history of electronics as they were among the first devices used for amplification and signal modulation.

Key Components

• Cathode: The cathode is a heated filament or a heated coating that emits electrons into the vacuum inside the tube. The heat causes thermionic emission, where electrons gain enough energy to escape from the cathode material.
• Anode (Plate): The anode is a positively charged electrode that attracts electrons emitted by the cathode. It is usually made of a metal plate or cylinder and collects the electrons that have traveled through the vacuum.
• Control Grid: The control grid is a wire mesh or spiral placed between the cathode and anode. It modulates the flow of electrons from the cathode to the anode. By applying a varying voltage to the control grid, the number of electrons reaching the anode can be controlled, thus modulating the current.

Working Principle

The operation of a triode relies on controlling the flow of electrons through the vacuum between the cathode and anode using the control grid. When a small negative voltage is applied to the control grid, it repels some of the electrons emitted by the cathode, reducing the current flowing to the anode. Conversely, a less negative or positive grid voltage allows more electrons to pass through, increasing the current. This ability to control the electron flow makes the triode an effective amplifier.

The triode can operate in different modes depending on the configuration of the electrodes and the voltages applied. The most common modes are:

• Common Cathode Configuration: The cathode is common to both the input and output signals, and the control grid is used to modulate the current between the cathode and anode.
• Common Plate Configuration: The anode is common to both the input and output signals, and the control grid modulates the electron flow between the cathode and anode.

Applications

• Amplification: Triodes are widely used in audio amplifiers, radio frequency amplifiers, and other applications where signal amplification is required. Their ability to provide significant gain makes them ideal for enhancing weak signals.
• Oscillators: Triodes can generate oscillating signals in applications such as radio transmitters and receivers. By adjusting the control grid voltage, they can produce stable frequencies.
• Switching: Triodes can act as electronic switches in various devices, controlling the flow of electrical current in response to changes in grid voltage.
• Audio Equipment: High-fidelity audio equipment often uses triodes due to their linear amplification characteristics, which contribute to a warm and rich sound quality.

Advantages

• High Gain: Triodes are known for their high gain, making them effective in amplifying low-level signals. This characteristic is particularly useful in audio and radio applications.
• Linear Operation: Triodes can operate in a linear region where the output signal is a faithful reproduction of the input signal. This linearity is essential for maintaining signal integrity and quality.
• Simple Construction: The basic design of a triode is relatively simple compared to modern transistors and integrated circuits, making them easier to understand and analyze.

Disadvantages

• Size and Power Consumption: Triodes are generally larger and consume more power than modern solid-state devices such as transistors. This can be a limitation in compact electronic designs.
• Heat Generation: The heating of the cathode generates significant heat, which requires adequate cooling and can affect the longevity and performance of the device.
• Fragility: Vacuum tubes, including triodes, are relatively fragile and can be damaged by physical shocks or vibrations.

Further Reading: Pentode vs Triode: What are Differences

Historical Significance

Triodes were first...

Read more

Variable resistors are crucial components in electrical and electronic devices, allowing for the adjustment of their resistance values as needed. These resistors achieve adjustment by sliding a contact (wiper) over a resistive element. When a variable resistor utilizes all three terminals, it functions as a potentiometer, serving as a voltage divider. If only two terminals are used, it acts as a rheostat, providing variable resistance.

How Variable Resistors Work

Variable resistors, including both potentiometers and rheostats, are essential in applications where frequent manual adjustment of resistance is required, such as in volume, tone, focus, and brightness controls. Potentiometers, which have three terminals, are commonly used as voltage dividers and offer a wide range of resistance values but usually handle lower currents. Rheostats, on the other hand, typically have two terminals, handle higher currents, and have a more limited range of resistance values. Digital potentiometers are electronically controlled versions, allowing resistance adjustment without mechanical movement.

Types of Variable Resistors

Variable resistors come in various forms to suit different applications. The primary types are potentiometers, rheostats, and digital resistors, each with unique characteristics and uses.

1. Potentiometers: These function as resistive dividers and are widely used to generate voltage signals based on the wiper's position. They are commonly found in applications like amplifier gain control, distance measurement, and circuit tuning. Trimmer potentiometers, or trimpots, are small adjustable versions used for fine-tuning on circuit boards.
2. Rheostats: Used as variable resistances, rheostats typically have two terminals: one at the end of the resistive element and the other at the wiper. Historically used for power control, they are now mainly used for circuit tuning and calibration, with modern power control achieved through more efficient electronics.
3. Digital Resistors: These adjust resistance electronically via digital signals rather than mechanical movement. They change resistance in discrete steps and are often controlled by digital protocols like I2C or simple up/down signals, making them ideal for applications requiring precise and programmable resistance adjustments.
4. Rotary Variable Resistors: These feature a knob that can be turned to change the resistance. They are commonly used for manual adjustments in settings such as audio volume and lighting brightness.
5. Slide Variable Resistors: These have a slider that moves along a resistive track to alter the resistance. They are often used in applications where linear adjustment is preferred, such as in audio mixing boards.

Features of Variable Resistors

• Precise Current Control: Ideal for applications that require fine-tuning of current flow.
• Two or Three Terminals: Can have two terminals (rheostat) or three terminals (variable resistor).
• High-Current Handling: Suitable for high-current applications, providing robust current control.
• Durability: Built to last and withstand extensive use.
• Various Types: Includes rotary and slide types, each suitable for different applications.
• Limited Resistance Options: Generally offers fewer resistance values compared to potentiometers.
• Calibration and Tuning: Often used for circuit calibration and tuning, ensuring optimal performance.

Applications of Variable Resistors

1. Current Regulation: Used to control the amount of current flowing through a circuit. By adjusting the resistance, they allow for precise current control, crucial in maintaining optimal performance and safety in electronic circuits.
2. Motor Speed Control: In motor drives and fan controllers, variable resistors regulate motor speed by adjusting the current supplied to the motor. This enables users to control the operational speed of motors and fans according to their needs.
3. Light Dimming: Used in dimmer switches to adjust light intensity. They change the resistance in the circuit to control...

Read more

Thermistors are a type of sensor resistor whose resistance value changes with temperature variations. They are classified into two types based on their temperature coefficient: Positive Temperature Coefficient (PTC) thermistors and Negative Temperature Coefficient (NTC) thermistors. PTC thermistors increase in resistance as temperature rises, while NTC thermistors decrease in resistance as temperature increases. Both types are semiconductor devices and offer several key characteristics that make them essential in various applications.

Key Characteristics of Thermistors

1. High Sensitivity: Thermistors exhibit higher resistance temperature coefficients than metals by 10 to 100 times, capable of detecting minute temperature changes as small as 10^-6°C.
2. Wide Operating Temperature Range: Standard thermistors can operate between -55°C and 315°C, high-temperature variants can exceed 315°C (up to 2000°C), and low-temperature thermistors are suitable for -273°C to -55°C.
3. Compact Size: Their small size allows for temperature measurement in spaces that other thermometers cannot access, such as gaps, cavities, and blood vessels.
4. Versatility in Resistance: Resistance values can be chosen between 0.1Ω and 100kΩ, offering flexibility in design.
5. Ease of Manufacturing: Thermistors can be produced in various shapes and in large quantities.
6. Stability and Overload Capacity: They provide reliable performance and can handle significant overloads.

You may like: Advantages and Disadvantages of Thermistor 2024

Working Principle

Thermistors remain inactive under normal conditions. When environmental temperature and current fall within a specific range, the thermistor’s heat dissipation power matches its heating power, leading to potential activation. The activation time shortens significantly with increasing current and higher ambient temperatures, resulting in lower holding and activation currents.

PTC Thermistors

PTC thermistors exhibit the PTC effect, where resistance increases with temperature. This linear PTC effect is common in most metals. Non-linear PTC effects occur in materials that undergo phase transitions, causing resistance to surge dramatically within a narrow temperature range. Conductive polymers often display this non-linear PTC effect, making them useful in overcurrent protection devices.

Applications of Polymer PTC Thermistors

Polymer PTC thermistors, also known as self-resetting fuses, are ideal for overcurrent protection due to their unique positive temperature coefficient characteristics. They function similarly to conventional fuses by being connected in series within a circuit. Under normal operation, the thermistor’s temperature and resistance are low, allowing current to flow unimpeded. However, in the event of an overcurrent, the thermistor’s temperature rises sharply, causing its resistance to spike and reducing the circuit’s current to a safe level.

Impact of Environmental Temperature

The performance of polymer PTC thermistors, including holding current (Ihold), activation current (Itrip), and activation time, is influenced by environmental temperature. They respond to both self-heating and cooling dynamics, and their resistance can recover to approximately 1.6 times the initial value within seconds to minutes after activation, allowing for repeated use. Smaller thermistors recover faster than larger ones.

Basic Characteristics

Thermistors follow a resistance-temperature relationship that can be approximated by the formula: R=R0exp⁡{B(1T−1T0)}R = R_0 \exp \{ B \left( \frac{1}{T} — \frac{1}{T_0} \right) \}R=R0exp{B(T1−T01)}

Where:

• RRR is the resistance at temperature TTT (in Kelvin).
• R0R_0R0 is the resistance at reference temperature T0T_0T0 (in Kelvin).
• BBB is a constant that varies with material composition.

Calculating Resistance Values

For practical applications, the B value can be adjusted using a temperature-dependent function: BT=CT2+DT+EB_T = CT²...

Read more

What is UJT Transistor

A Unijunction Transistor (UJT) is a semiconductor switching device with three terminals: emitter (E), Base 1 (B1), and Base 2 (B2). Unlike typical transistors, it contains only one pn-junction.

Types of UJT Transistor

Original UJT (2N2646):

The classic UJT has a single pn-junction and three terminals: an emitter (E), and two bases (B1 and B2). It is used in oscillator circuits, timing circuits, and for triggering thyristors and triacs.
Programmable UJT (PUT):

The PUT is a type of transistor that can be programmed by the user to have different intrinsic standoff ratios. It is similar in operation to the standard UJT but offers more flexibility. It is often used in similar applications as the original UJT but with added versatility.

Application

• Oscillators: UJTs are often used in oscillator circuits, such as sawtooth waveform generators and relaxation oscillators. These circuits are useful in timing applications and generating clock pulses.

• Pulse Generation: UJTs are employed in pulse generation circuits where they can create sharp pulses necessary for triggering other components, such as thyristors and triacs in power control applications.

• Timing Circuits: UJT-based timing circuits are used in applications requiring precise time delays. These circuits are commonly found in delay timers, pulse generators, and timing circuits in various electronic devices.

• Phase Control: In phase control applications, UJTs can be used to control the phase of AC signals. This is particularly useful in light dimmers, motor speed controllers, and other similar applications.

• Triggering Devices: UJTs serve as triggering devices for silicon-controlled rectifiers (SCRs) and triacs. This is crucial in power control applications where precise control of switching devices is needed.

• Voltage Regulation: UJTs are sometimes used in voltage regulation circuits, where they help maintain a stable output voltage despite variations in input voltage or load conditions.

• Sawtooth Waveform Generators: UJTs can be used to generate sawtooth waveforms, which are essential in applications like function generators, television sweep circuits, and other signal processing equipment.

• Analog Signal Processing: In some analog signal processing applications, UJTs are used for their unique switching properties to shape and modify analog signals.

What is BJT Transistor

The Bipolar Junction Transistor (BJT) is a semiconductor device featuring three terminals: emitter (E), base (B), and collector (C). It operates by utilizing both electrons and electron holes as charge carriers, hence the term "bipolar." BJTs are pivotal components in electronic circuits, serving as switches and amplifiers.

Working Principle

Control of the current flowing from emitter to collector is achieved by regulating the current at the base terminal. A small current injected into the base controls a larger current flowing between emitter and collector. This characteristic enables amplification or switching functionality.

Main Differences between UJT and BJT Transistor

The Unijunction Transistor (UJT) and Bipolar Junction Transistor (BJT) are distinct types of transistors with unique structures and operational principles. The UJT is a three-terminal semiconductor switch consisting of a lightly-doped N-type silicon bar with an alloyed P-region, forming a single PN junction and featuring an emitter (E) and two base terminals (B1 and B2). It operates based on the varying emitter-base resistance, triggering a current surge when specific voltage conditions are met. This device primarily involves majority carriers and is used in applications such as thyristor triggering, oscillators, and pulse generators.

In contrast, the BJT is a three-layer, two PN-junction semiconductor device with an emitter (E), base (B), and collector (C) configuration, where the base current controls the emitter-collector current flow. It utilizes both majority and minority carriers, making it suitable...

Read more
