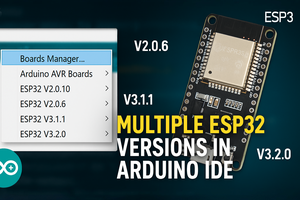

Thermal Tool - ESP32 thermal camera board

A PCB board for connecting the ESP32 with the FLIR Lepton 3.5

Thermal Tool

Following Follow project

Liked Like project

Become a Hackaday.io member

Just one more thing

To make the experience fit your profile, pick a username and tell us what interests you.

OK, I'm done! Skip

Similar projects worth following

View Gallery

Description

A Thermal camera connection board along with software for running it on a ESP32. At the moment the software supports sending thermal images to a tcp server. Thermal images can be viewed via the webapp and different cameras can be connected.

Future planning is to add native mobile support, so the camera can be connected directly to a phone.

Board works together with Flir Lepton 3.5

Details

Board works together with:

Flir Lepton 3.5 (https://www.digikey.es/product-detail/en/flir-lepton/500-0771-01/500-0771-01-ND/7606616)
Breakout board (https://www.digikey.es/product-detail/en/flir-lepton/250-0587-00/250-0587-00-ND/5266963)
ESP32 DEVKIT 1

Board includes access to thermaltool github repos, which contains:

Django 2.1 Backend incl. django-channels setup for websockets
Vue/Nuxt Frontend
TCP Server
ESP32 software

Components

1 × Flir Lepton 3.5 https://www.digikey.es/product-detail/en/flir-lepton/500-0771-01/500-0771-01-ND/7606616
1 × ESP32 thermal camera devboard https://www.tindie.com/products/thermaltool/thermal-tool-esp32-thermal-camera-board/
1 × Flir Breakout board https://www.digikey.es/product-detail/en/flir-lepton/250-0587-00/250-0587-00-ND/5266963
1 × ESP32 https://docs.zerynth.com/latest/official/board.zerynth.doit_esp32/docs/index.html

Discussions

Dan Maloney wrote 01/15/2019 at 16:42

I didn't know the Lepton was such a small camera. I figured the board would take up much more space. Nice job, keep us posted.

Are you sure? yes | no

Similar Projects

A rather powerful flash for you RPi Camera

Thermal Tool - ESP32 thermal camera board

Description

Details

Components

Discussions

Similar Projects

Raspberry Pi camera flash

Feather Flipper

Esp32-Stick-Cam(Esp32-S3+Active/PassivePoE+Camera)

Pocket C.H.I.P Phone

Thermal Tool - ESP32 thermal camera board

Become a Hackaday.io member

Just one more thing

Description

Details

Components

Enjoy this project?

Discussions

Become a Hackaday.io Member

Similar Projects

Raspberry Pi camera flash

Feather Flipper

Esp32-Stick-Cam(Esp32-S3+Active/PassivePoE+Camera)

Pocket C.H.I.P Phone

Does this project spark your interest?

Report project as inappropriate

Send message

Remove Member
