Every electronic device starts with a printed circuit board, or PCB. It’s the heart that connects every component and makes the system work. To design one, engineers use special tools called PCB design software.

Today, there are many free PCB design software for advanced printed circuit boards, and that’s great news for makers and small teams. But choosing the right one is not easy. Some tools are perfect for simple LED blinkers; others can handle high-speed signals and 16-layer boards.

The trick is to balance cost, capability, and complexity. A good free tool can take your design from idea to working prototype — if you pick wisely.

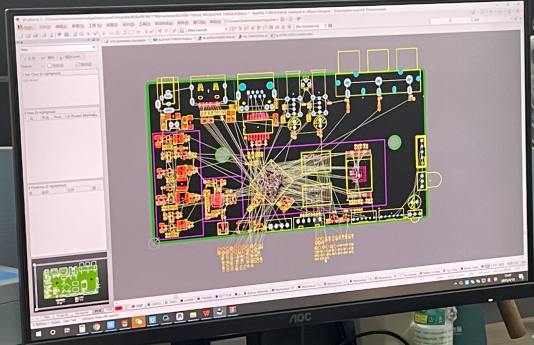

What “Free” Really Means in PCB Design Software

When you see the word “free,” it sounds great — but in PCB design, “free” can mean a few very different things. Let’s break it down in simple terms.

First, there are truly free tools. These are often open-source PCB CAD programs, like KiCad. You can download them, use them for any kind of project, even sell boards you design — and you never pay a cent. The trade-off? They might take more time to learn, and you’ll rely on the user community for help instead of company support.

Next, there are freemium EDA tools. “Freemium” means you get a basic version for free, but advanced features cost money. For example, a free plan might limit how many layers your board can have or how big it can be. You can design small hobby projects, but not a high-speed multilayer board. It’s a taste of the full product, not the whole meal.

Finally, some tools are free only for personal or non-commercial use. That means you can’t use them for paid or company projects without buying a license.

So yes, free tools aren’t magic — but some are surprisingly capable. If you understand what “free” really means and match the tool to your project, you can still create powerful designs without spending a dollar.

Key Factors to Evaluate When Choosing Free PCB Design Software

When you pick a free PCB design tool, don’t just look at the price — look at what it can really do. Here are the most important things to check before you start your next board.

1. Design Complexity Support

If your project has many layers or high-speed signals, you need software that can handle multilayer boards, HDI layouts, and differential pairs. Some free tools only support 2 layers, which is fine for simple circuits. But if you want to design advanced printed circuit boards — like those used in routers or computers — you’ll need tools that allow impedance control and more complex routing options.

2. Library and Footprint Management

Every part on your board needs a symbol and a footprint. Good software helps you find, edit, or build these easily. Some tools have cloud libraries with thousands of ready-to-use parts, which saves a lot of time. Others let you make your own custom libraries, which is useful for rare or new components. Just make sure your software can import and export these files easily.

3. Simulation and Verification Tools

Before sending your design to a factory, you must be sure it works. Free PCB design software should include tools like DRC (Design Rule Check), signal integrity checks, and sometimes thermal analysis. These tools catch mistakes early — like tracks that are too close or missing connections — and can save you time and money later.

4. Manufacturing File Output

Once your design is ready, you need to send it to a PCB manufacturer. Your software must export Gerber files, drill files, and ideally ODB++ or IPC-2581 formats. Also, check if it supports stack-up management, which defines the thickness and material of each layer. If your tool can’t output standard manufacturing files, your project may stop before it even starts.

5. Community and Documentation

With open-source PCB CAD tools, community support is everything. You’ll find help in forums, YouTube tutorials, and online guides. A strong community can teach you faster than a paid course. If the software has poor documentation or a quiet forum, you might struggle when you hit a problem. Choose a tool with active users who share tips and updates.

6. Cross-Platform Compatibility

Not everyone uses Windows. Many engineers work on Linux or macOS. Some free PCB design tools are cross-platform, while others are not. If you plan to collaborate with others, make sure everyone can open the project on their system. Compatibility helps your workflow stay smooth and easy.

Choosing the right free PCB design software is not about finding the flashiest interface — it’s about finding the tool that fits your project’s needs. Once you match the features to your goals, even a free tool can take you far.

Comparing Popular Free PCB Design Tools (Real-World Perspective)

Now that you know what to look for, let’s look at some of the most popular free PCB design software used by engineers, makers, and hackers around the world. Each one has its strengths — and a few weak spots. No tool is perfect, but one of them might be perfect for you.

Here’s a simple comparison:

Software	Type	Best For	Pros	Cons
KiCad	Open-source	Complex multilayer boards	Full professional features, no layer limits, large community	Steep learning curve, interface can feel old
EasyEDA	Cloud-based	Quick prototypes and beginners	Runs in your browser, easy to start, links directly to PCB manufacturing	Limited offline use, fewer advanced routing options
Autodesk Eagle Free	Freemium	Hobby and small projects	Clean and friendly UI, good library support	Board size and layer limits in free version
DesignSpark PCB	Freeware	Semi-pro users and engineers	Solid features, no time limits, good for small companies	Closed file format, limited updates
Fritzing	Open-source	Simple circuits and learning	Very easy for beginners, visual breadboard view	Not suitable for real PCB production
Upverter	Cloud-based	Collaborative designs and startups	Great for teams, works online, integrates BOM tools	Requires constant internet, limited customization

Each of these tools has a different “personality.”

• KiCad is the power tool — strong, flexible, and perfect for advanced printed circuit boards.
• EasyEDA is friendly and fast — great for getting a prototype out the door.
• Eagle Free gives you a taste of pro-level features, but with some limits.
• DesignSpark sits in the middle — more powerful than beginner tools, still easy to learn.
• Fritzing is like training wheels for PCB design — fun for education, but not for high-speed boards.
• Upverter helps teams design together online, though it’s less common for DIY work.

Each tool has its quirks — choose what bends, not breaks, under your project’s complexity.

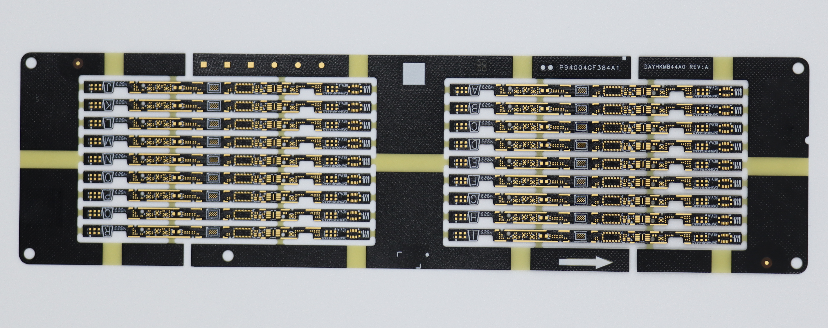

Advanced PCB Needs: What to Watch Out For

Designing a simple PCB is one thing. Making an advanced printed circuit board is a whole different game. When your design runs at high speed, has many layers, or uses fine-pitch parts, small mistakes can cause big problems. Let’s look at what makes advanced PCB work harder — and what your free PCB design software can or can’t do.

1. Controlled Impedance Routing

When signals move fast, the width of your trace and the distance between layers matter. This is called controlled impedance. If the impedance is wrong, signals can reflect or lose strength. Some tools, like KiCad, let you set rules for trace width and spacing to control impedance. Others, especially lighter or online tools, may not have this feature.

2. Differential Pair Matching

High-speed data lines often travel in pairs — like USB or DDR memory signals. These are called differential pairs. They must be the same length so signals arrive at the same time. Advanced software can route these pairs and show length differences as you go. In some free tools, this feature exists but works only in a basic way, so you may have to fine-tune things by hand.

3. Via-in-Pad and HDI Stack-Ups

For small and dense boards, designers use via-in-pad and HDI (High Density Interconnect) structures. These help fit more connections into less space. Not every free tool can define this kind of stack-up properly. HDI boards need careful layer setup and precise drill files. KiCad can handle some of it with extra setup, but it’s not fully automated.

4. High-Speed Signal Simulation

Before building an advanced board, it’s smart to test your signals in software. High-speed signal simulation helps you see reflections, crosstalk, and delay problems. Professional tools like Altium or Cadence have built-in simulators. Some free software, like KiCad, can do basic checks through plugins — but expect to spend time learning and adjusting settings.

Advanced work with free tools is possible — but it takes patience. For example, routing DDR3 lines in KiCad is possible, but it demands care, discipline, and lots of test runs. The tool won’t stop you from making a mistake, so your experience becomes the key.

In short: free PCB software can take you surprisingly far, even with advanced PCB designs. But as the board gets faster and denser, you’ll need more skill — not just better software.

How to Transition from Free to Professional PCB Design Tools

Starting with free PCB design software is a great way to learn. You can build your first boards, test ideas, and understand the design process — all without spending money. But as your projects grow, you may reach the limits of free tools. That’s when it’s time to think about moving to professional software like Altium Designer, OrCAD, or Mentor Graphics.

Let’s go step by step so the move is smooth and smart.

1. Start Simple, Learn the Basics

Free tools like KiCad or EasyEDA are great teachers. They help you learn how to draw schematics, route traces, and generate manufacturing files. These skills don’t change — the same logic applies in high-end software. So, take time to master these basics. When you later switch to a paid tool, you’ll already understand how things work.

2. Watch for File Compatibility

Every PCB tool saves files in its own format. This can cause problems when moving between systems. To make migration easier, always export your work in standard formats:

• Gerber and drill files – used by every PCB manufacturer.
• Netlists – describe how parts connect.
• STEP or IDF files – for 3D models.
• DXF – for mechanical outlines.

If your free software can export these, you can open or import them later in Altium, OrCAD, or other pro tools.

3. Use Intermediate Tools if Needed

Some engineers use freemium EDA tools (like Autodesk Eagle) as a bridge. They have friendly interfaces and offer direct upgrade paths to professional plans. This helps you move gradually instead of starting over from scratch.

4. Plan the Transition Early

If you know your designs will get more complex — for example, moving from 2 layers to 10 layers — start using workflows and file naming systems that will still make sense later. Professional tools need more structured data, so clean habits now save trouble later.

5. Keep Your Old Projects Safe

Always keep backups in standard formats before moving to new software. Some free tools (like EasyEDA) store projects in the cloud — download copies before you switch.

6. Grow with Your Needs

You don’t have to jump straight to a $10,000 software license. Start free, learn, and move up only when your project or company demands it. This way, you’re investing wisely — in both tools and your own skills.

In short: free PCB design software is your foundation. It teaches you how to think like an engineer. When you outgrow it, professional tools simply give you more power — not new rules. The skills you build now will carry you through every upgrade that comes next.

Conclusion: Empowering Hardware Innovation

Every hacker starts with free tools. What matters most isn’t how expensive your software is — it’s how you use it. With the right free PCB design software, some skill, and a bit of patience, you can build boards that look and perform like professional designs.

Free tools can take you far if you’re willing to learn and experiment. They teach you to think, solve problems, and push limits — the true spirit of engineering.

So go ahead — grab your open-source CAD, fire up your soldering iron, and push your next board beyond the basics.
