Open 22.6 GHz RF Signal Generator (DSG-22.6GHz)

0.3–22.6 GHz portable RF signal generator, USB-C powered, touchscreen, compact and precise for test, measurement and production lines.

eeengineer4everEEEngineer4Ever
Following
Liked Like project

Just one more thing

To make the experience fit your profile, pick a username and tell us what interests you.

Pick an awesome username
hackaday.io/
Your profile's URL: hackaday.io/username. Max 25 alphanumeric characters.
Pick a few interests
Projects that share your interests
People that share your interests

We found and based on your interests.

Choose more interests.

OK, I'm done! Skip
Similar projects worth following
1.7k views
1 comments
20 followers
View Gallery
DSG-22.6GHZ is a compact, high-performance RF source designed to meet the needs of modern test and measurement applications across a wide frequency spectrum. Covering a continuous range from 300 MHz to 22.6 GHz with 1 Hz tuning resolution, this device delivers precision and flexibility in a highly portable form factor.

Engineered for versatility and ease of use, the signal generator features a capacitive touchscreen interface and supports output power levels from 15 dBm to -50 dBm adjustable in 1 dB steps.

The signal generator has filtered and unfiltered output options. It has guaranteed 40 dBc harmonic level up to 0 dBm output.
The unit is powered through a standard USB Type-C interface (5V, 1.5A), making it suitable for both bench-top and field use. Optional support for a 10 MHz external reference input ensures compatibility with precision timing systems.

  • Product Features
    • Frequency Range: 0.3 – 22.6 GHz
    • Tuning resolution: 1 Hz
    • Output Power Level: 15 dBm to -50 dBm, 1 dB steps
    •  ≥ 40 dBc Harmonic / Spurious suppression
    • External Reference Frequency Input: 10 MHz (optional)
    • Tuning speed: 100 μs
    • Frequency Sweep
    • Capacitive Touchscreen
    • Power supply from USB (Type-C) interface 5V, 1.5A
    • Data Interface USB (Type-C) or WIFI
    • Built-in test features: Temperature, Voltage/Current Monitor, PLL Lock Status
    • Size: (114 x 60 x 17 mm)
  • Applications
    • Test Instrumentation
    • Radar Systems
    • Microwave Radio Systems
    • Test of SDRs
    • Research and Development

Electrical Specifications

Test conditions unless otherwise noted: T = 25°C

ParameterMinTypMaxUnits
Frequency Range30022600MHz
Output Power Level-5015dBm
Frequency Resolution1Hz
External Frequency Reference (optional)10 MHz-50dBm
Tuning Speed100μs
DC Supply VoltageUSB (Type-C)
DC Supply Current10001500mA
  • Physical Interfaces
    • RF Output: SMA
    • Refereance CLock Input : SMA
    • Power Supply: USB (Type-C)

  • Control Interfaces
    DSG-22.6GHZ can be contolled with 3 opitons
    • USB
    • WIFI
    • Touchscreen Display
    • Web interface over Wifi
    • Python Interface Over Wifi or USB (Using SCPII commands)

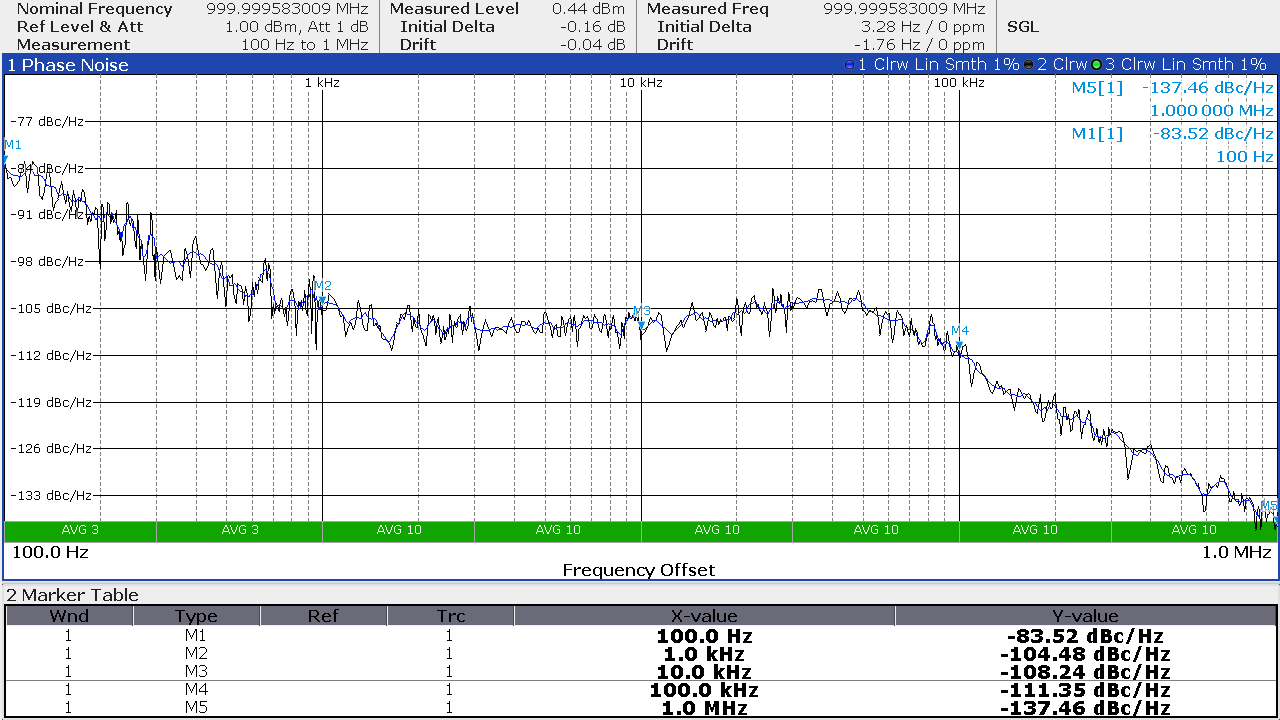

                                                                 Phase Noise Measurement @ 1GHz

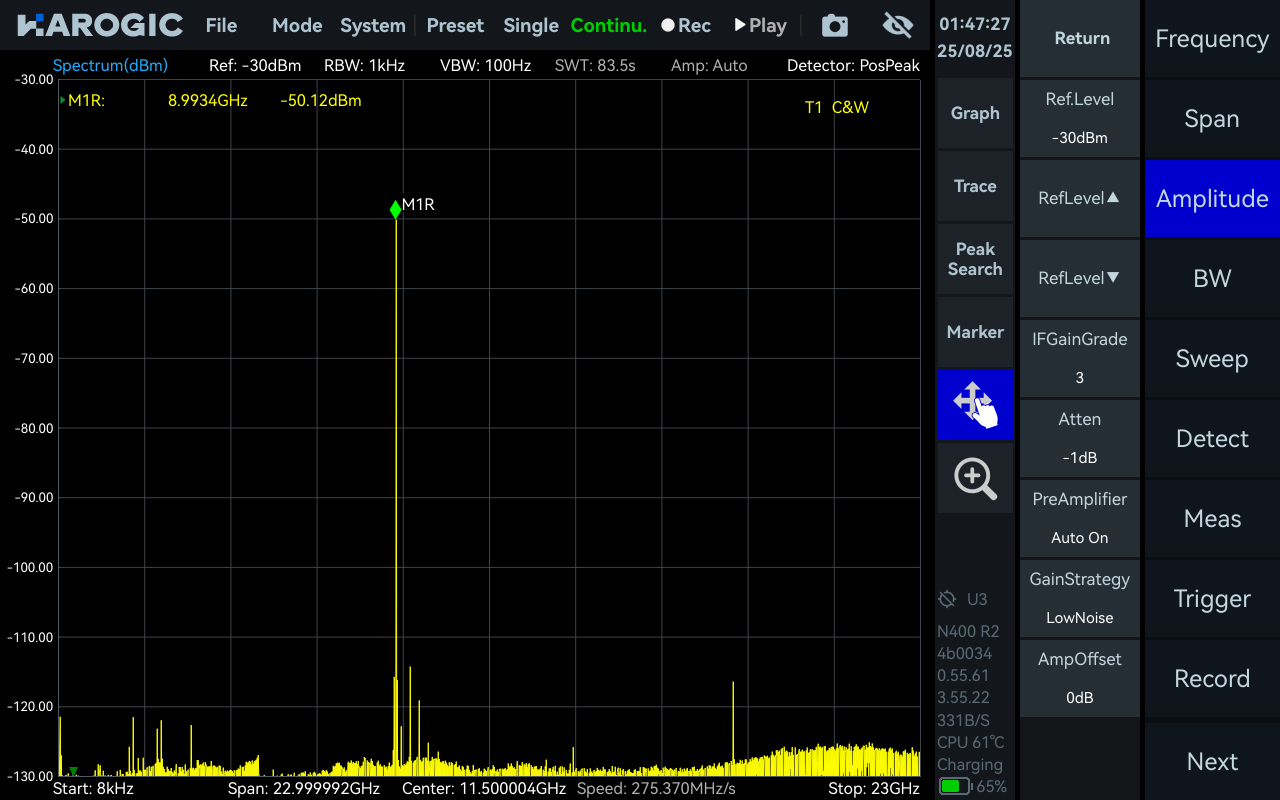

                                                                              Example Spectral view

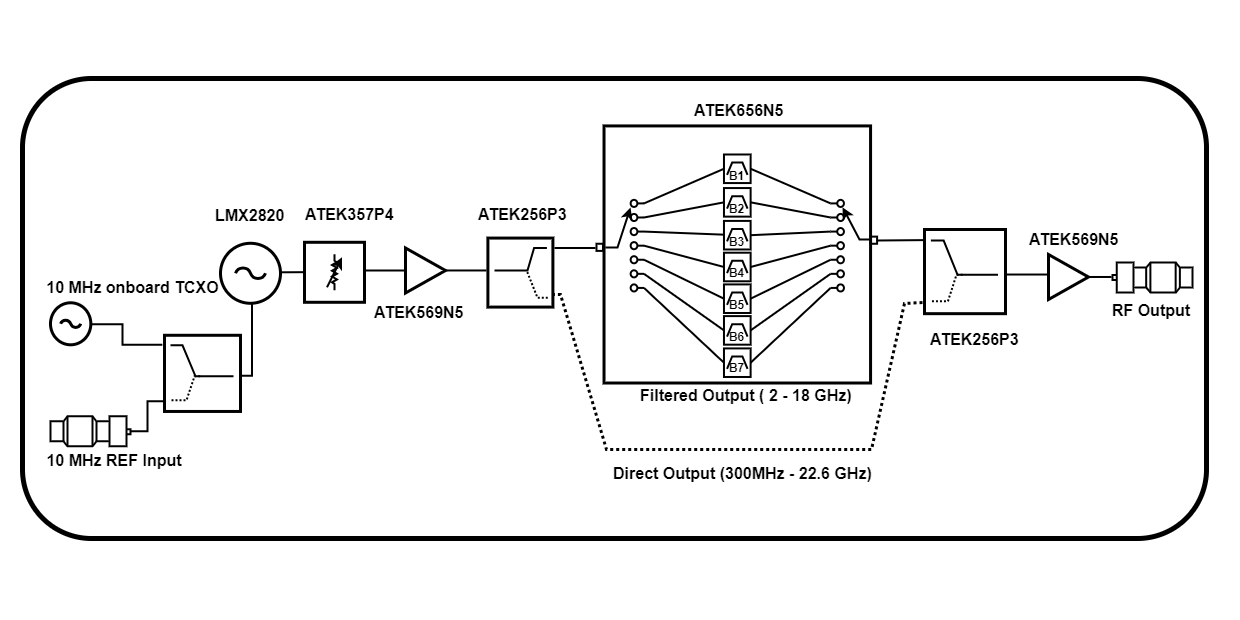

                                                                               Block Diagram

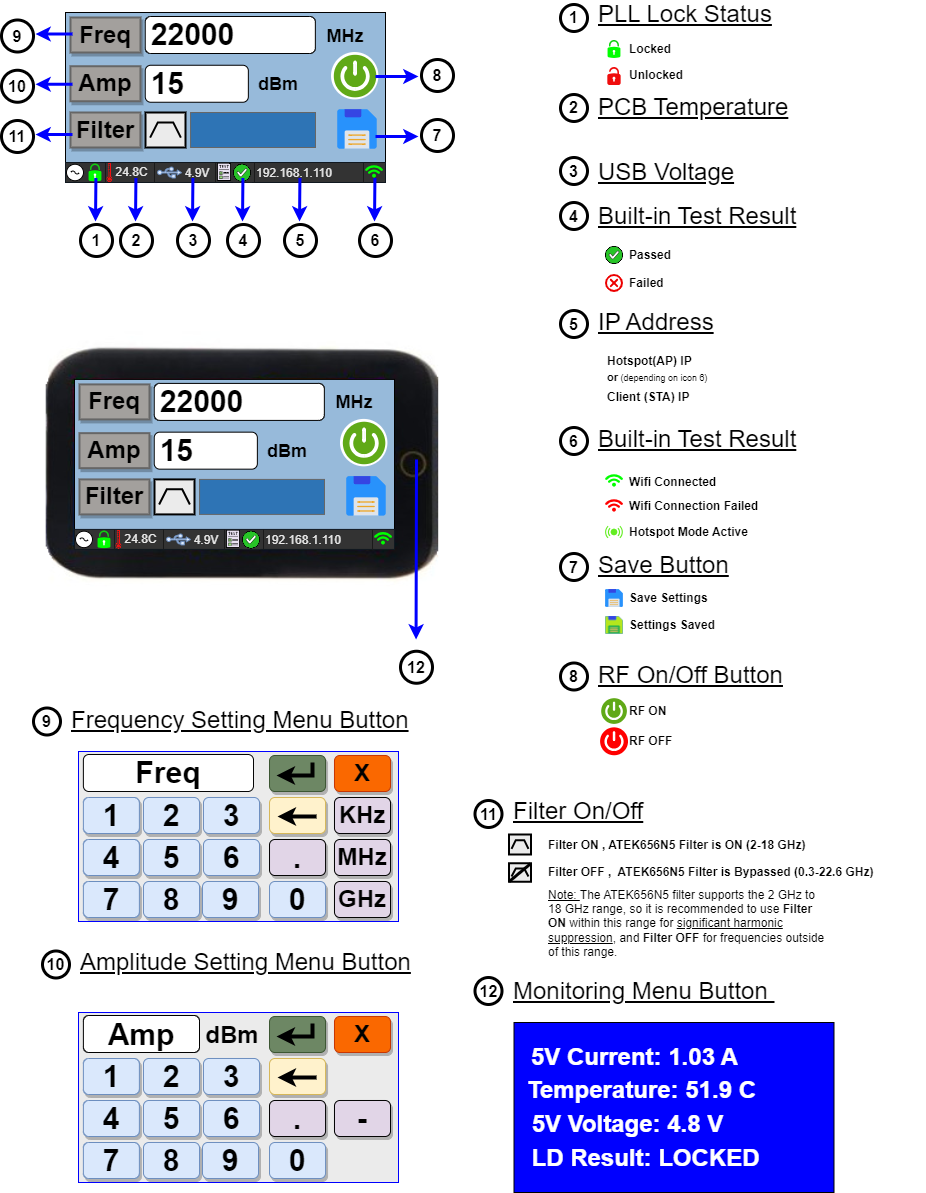

                                                                              Menu Descriptions

We are live on Crowdsupply

https://www.crowdsupply.com/atek-midas/dsg-22-6-ghz


18 GHz full span view

Portable Network Graphics (PNG) - 141.03 kB - 09/02/2025 at 22:42

Preview


3 GHz full span view

Portable Network Graphics (PNG) - 142.23 kB - 09/02/2025 at 22:42

Preview


15 GHz full span view

Portable Network Graphics (PNG) - 146.71 kB - 09/02/2025 at 22:42

Preview


11 GHz full span view

Portable Network Graphics (PNG) - 141.90 kB - 09/02/2025 at 22:42

Preview


9 GHz full span view

Portable Network Graphics (PNG) - 147.03 kB - 09/02/2025 at 22:42

Preview

View all 6 files

  • 1 × ATEK656N5 ATEK656N5 is a sub-octave switchable filter bank covering 2 – 18 GHz frequency band. Filterbank consists of an SP6T switch followed by 6 fixed frequency band pass filters which are followed by another SP6T switch.
  • 2 × ATEK256P3 ATEK256P3 is a wideband absorptive SPDT switch with low loss and high isolation. Frequency of operation starts from low frequencies close to DC, goes up to 18 GHz. Usable bandwidth covers 20 GHz.
  • 2 × ATEK357P4 ATEK357P4 is a wideband 5-bit Digital Step Attenuator with 30 dB attenuation range. Attenuator frequency of operation goes down to Low Frequency close to DC and goes up to 20 GHz. Bias and control voltages of the attenuator are positive, which eliminates the need for negative voltage rails.
  • 1 × LMX2820RTCR Phase Lock Loops - PLL
  • 2 × ATEK569N5 ATEK569N5 is a wideband driver amplifier covering 0.2 to 26 GHz frequency range. ATEK569N5 provides flat gain with single supply voltage. This allows users to easily realize wideband receiver frontends.

View project log
